High Brightness RGB TFT LCD Display Module 40Pin Capacitive Touch 4.3Inch 480x272

Name: High Brightness RGB TFT LCD Display Module 40Pin Capacitive Touch 43Inch 480x272
Brand: Formike
Price: 1 USD

Wholesale High Brightness RGB TFT LCD Display Module 40Pin Capacitive Touch 4.3Inch 480x272 from china suppliers

Color : Color

Supply Voltage : 3.3V

Packaging Details : Tray + Inner Box + Carton

Product Name : 4.3-Inch 480x272 High Brightness RGB TFT LCD Module 40Pin LCD RGB TFT Display With Capacitive Touch

Brand Name : Formike

Operating Temperature : -20°C to 70°C

Controller Ic : ST7282

Viewing Angle : 6 O'Clock

Dimensions : 105.5mm x 67.2mm x 4.3mm

MOQ : 1 piece

Display Size : 4.3-inch

Touch Screen : With capacitive touch

Resolution : 480*272

Place of Origin : China

Delivery Time : In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;

Supply Ability : 5000000000 pieces/year

Display Type : 4.3 Inch TFT LCD Screen

Payment Terms : T/T,L/C,Credit card,Cash

Model Number : KWH043ST43-C03

Interface : 40 Pin, 24 BIT RGB

Contact Now

4.3-Inch 480x272 High Brightness RGB TFT LCD Module 40Pin LCD RGB TFT Display With Capacitive Touch

High Brightness RGB TFT LCD Display Module 40Pin Capacitive Touch 4.3Inch 480x272

LCD Name	4.3-Inch 480x272 High Brightness RGB TFT LCD Module 40Pin LCD RGB TFT Display With Capacitive Touch
LCD Size	4.3 Inch LCD Screen	Resolution	480X272
Color Depth	16M	Contrast Ratio	550:1
Outline Dimension	105.5x 67.20 x 4.30mm	Active Area(HxV mm)	95.04x53.86mm
Viewing Direction	6 O'Clock	Interface	24 BIT RGB, 40 Pin
Backlight	16 White LED	Brightness	850cd/m2
Operating Temperature	-20℃~70℃	Backlight Supply Current/Voltage	40mA, 24V

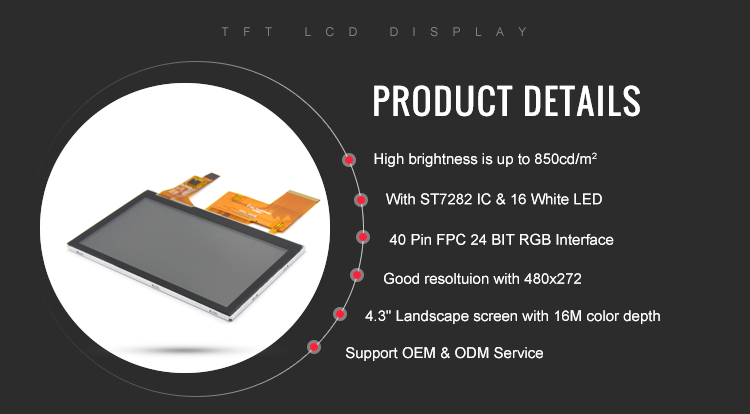

Support with LCD Driver Board With Capacitive Touch Panel High brightness is up to 850cd/m²

* KWH043ST43-C03 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.

* It is 480x272 resolution TFT LCD module.

* Backlight with different brightness options from 200 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

High Brightness RGB TFT LCD Display Module 40Pin Capacitive Touch 4.3Inch 480x272
