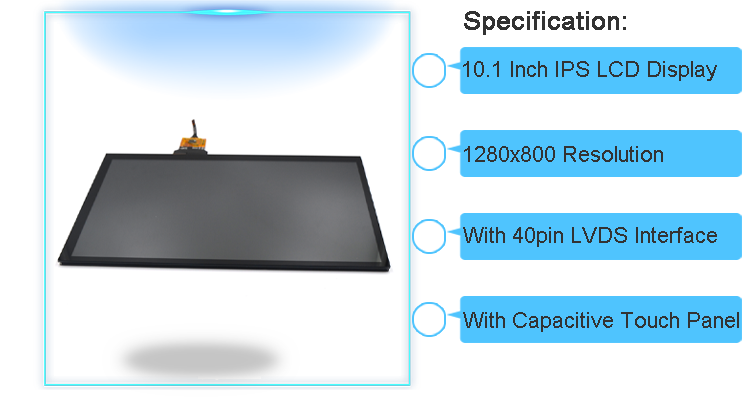

1280x800 LCD TFT LVDS Touch Screen 10.1 Inch Display LCD Module Flat Panel

Name: 1280x800 LCD TFT LVDS Touch Screen 101 Inch Display LCD Module Flat Panel
Brand: Formike
Price: 1 USD

Wholesale 1280x800 LCD TFT LVDS Touch Screen 10.1 Inch Display LCD Module Flat Panel from china suppliers

Dimensions : 229.46mm x 149.10mm x 4.90mm

Operating Temperature : 0°C to 50°C

Interface : 40Pin, LVDS

Place of Origin : China

Supply Ability : 5000000000 pieces/year

Touch Screen : With capacitive touch screen

Product Name : 1280x800 LCD TFT LVDS Touch Screen Display 10 Inch LCD Module

Display Size : 10 inch

MOQ : 1 piece

Packaging Details : Partition + A/S Bag + Corrugated Bar + Carton

Model Number : KWH101KQ07-C01

Display Type : 10.1 Inch TFT LCD Display

Resolution : 1280x800

Brand Name : Formike

Delivery Time : In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;

Color : Color

Viewing Angle : All

Payment Terms : T/T,L/C,Credit card,Cash

Contact Now

1280x800 LCD TFT LVDS Touch Screen Display 10 Inch LCD Module

1280x800 LCD TFT LVDS Touch Screen 10.1 Inch Display LCD Module Flat Panel

Product Name	1280x800 LCD TFT LVDS Touch Screen Display 10 Inch LCD Module
LCD Size	10.1 Inch TFT LCD Display Module
Display Mode	IPS
Resolution	1280x800
Outline Dimension (mm)	229.46x149.10x4.90
Active Area (mm)	216.96x135.60
Dot pitch (mm)	0.1695x0.1695
Viewing Direction	All
Interface	LVDS Interface, 40 Pin
Surface Hardness	6H
Brightness (Cd/m²)	350
Contrast Ratio	800:1
Backlight	30 White LED
Backlight Supply (Current/Voltage)	200mA 8.8V
Touch Screen	With Capacitive Touch Panel

* KWH101KQ07-C01 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, CTP.

* It is 1280x800 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.
