7Inch LVDS Wuxga TFT LCD Screen Panel Module 40 Pin 800X480 Touchscreen

Name: 7Inch LVDS Wuxga TFT LCD Screen Panel Module 40 Pin 800X480 Touchscreen
Brand: Formike
Price: 1 USD

Wholesale 7Inch LVDS Wuxga TFT LCD Screen Panel Module 40 Pin 800X480 Touchscreen from china suppliers

Delivery Time : In Stock: 3~8 working days. No Stock: LCD / LCM / OLED Products——5~8 weeks;

Dimensions : 164.9mm X 100.0mm X 4.9mm

Brand Name : Formike

Product Name : 7Inch TFT LCD Screen Module 7.0 40 Pin TFT Display 800X480 With Touchscreen

Touch Screen : With resistive touch screen

Model Number : KWH070ZX44-F02

Supply Voltage : 3.3V

Payment Terms : T/T,L/C,Credit card,Cash

Color : Color

Viewing Angle : 6 O'Clock

Supply Ability : 5000000000 pieces/year

Interface : 40 Pin, 24 BIT RGB

Packaging Details : Partition + A/S Bag + Corrugated Bar + Carton

Operating Temperature : -20°C to 70°C

Display Type : 7 Inch TFT LCD Display

Place of Origin : China

Resolution : 800 x 480

MOQ : 1 piece

Display Size : 7 inch

Contact Now

7Inch TFT LCD Screen Module 7.0 40 Pin TFT Display 800X480 With Touchscreen

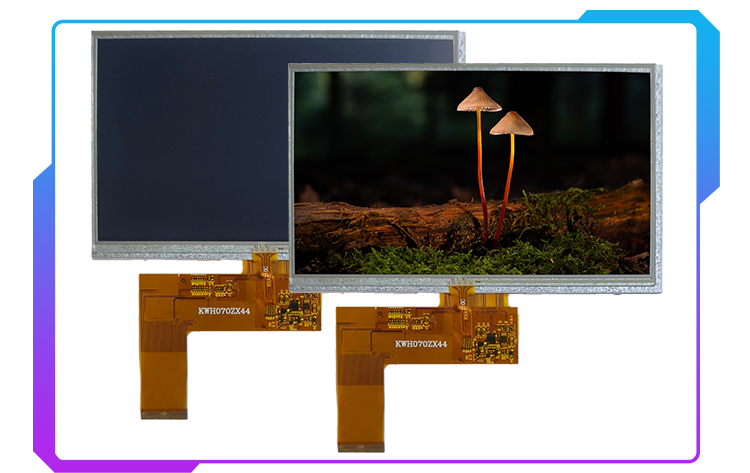

7Inch LVDS Wuxga TFT LCD Screen Panel Module 40 Pin 800X480 Touchscreen

Product Name	7Inch TFT LCD Screen Module 7.0 40 Pin TFT Display 800X480 With Touchscreen
LCD Size	7 Inch TFT LCD Display Module
Display Mode	Transmissive
Resolution	800x480
Outline Dimension (mm)	164.90x100.00x4.90
Active Area (mm)	154.08x85.92
Dot pitch (mm)	0.1926x0.1790
Viewing Direction	6 O'clock
Interface	RGB Interface, 40 Pin
Color Depth	16.7M
Brightness (Cd/m²)	450
Contrast Ratio	500:1
Backlight	21 White LED
Backlight Supply (Current/Voltage)	60mA 21.4V
Touch Screen	With Resistive Touch Screen

* KWH070ZX44-F02 is a Transmissive type color active matrix liquid crystal display (LCD).

* It is composed of a TFT LCD panel, driver IC, FPC, backlight, RTP.

* It is 800x480 resolution TFT LCD module.

* Backlight with different brightness options from 250 - 1500cd/m2 are available.

* Specific touch panel can be designed & customized.

* RoHS & REACH compliant.

* If you can't find a suitable one, contact us to get a recommendation.

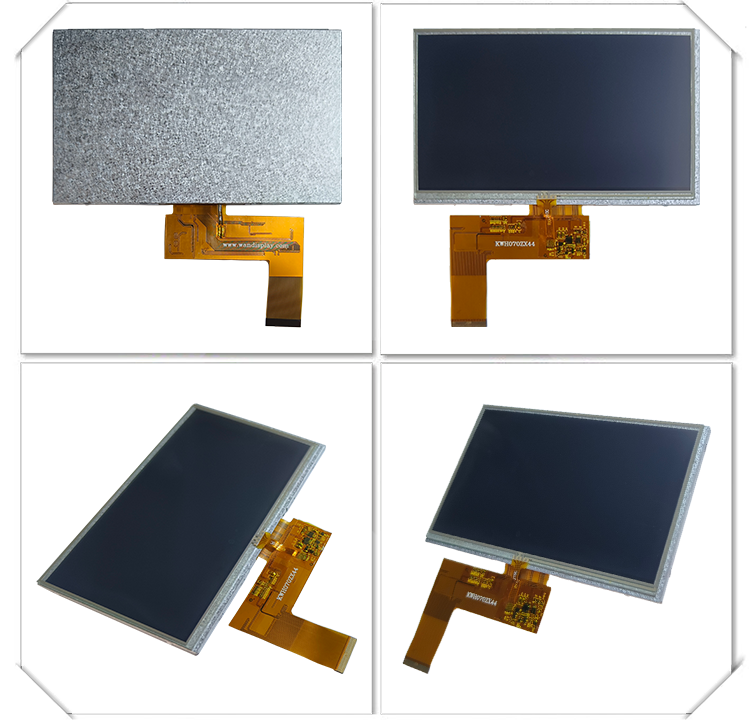

7Inch LVDS Wuxga TFT LCD Screen Panel Module 40 Pin 800X480 Touchscreen
